 TRACTOR
DRIVEN WATER PUMPS

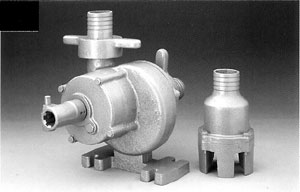

Water Pump Direct on PTO Shaft
• Entirely made of cast iron
• Delivered with a foot valve
• Driven by the PTO shaft of the tractor or
by gear shaft
• Pump and hose have to be primed
Applications:
Used for irrigations with need of high flow, for
extraction of light slurries, cleaning of wells, racking
sewage water etc
Max flow rate: 1000 litres/min
Max pressure: 2 bar
Suction height: 5 m/16ft
Hose diameter: 60mm/2½”
Rpm: 540
Power requirement: 6Kw/8Hp
Weight: 26kg (complete)
| Flow
Rate
|
| |
|
|
|
|
|
|
| Bar |
0.2 |
0.5 |
0.8 |
1.4 |
1.7 |
2 |
| L/min |
1000 |
883 |
700 |
350 |
175 |
0 |
-
PLEASE CONTACT US ABOUT ANY OF THE ABOVE MODELS
-
|
